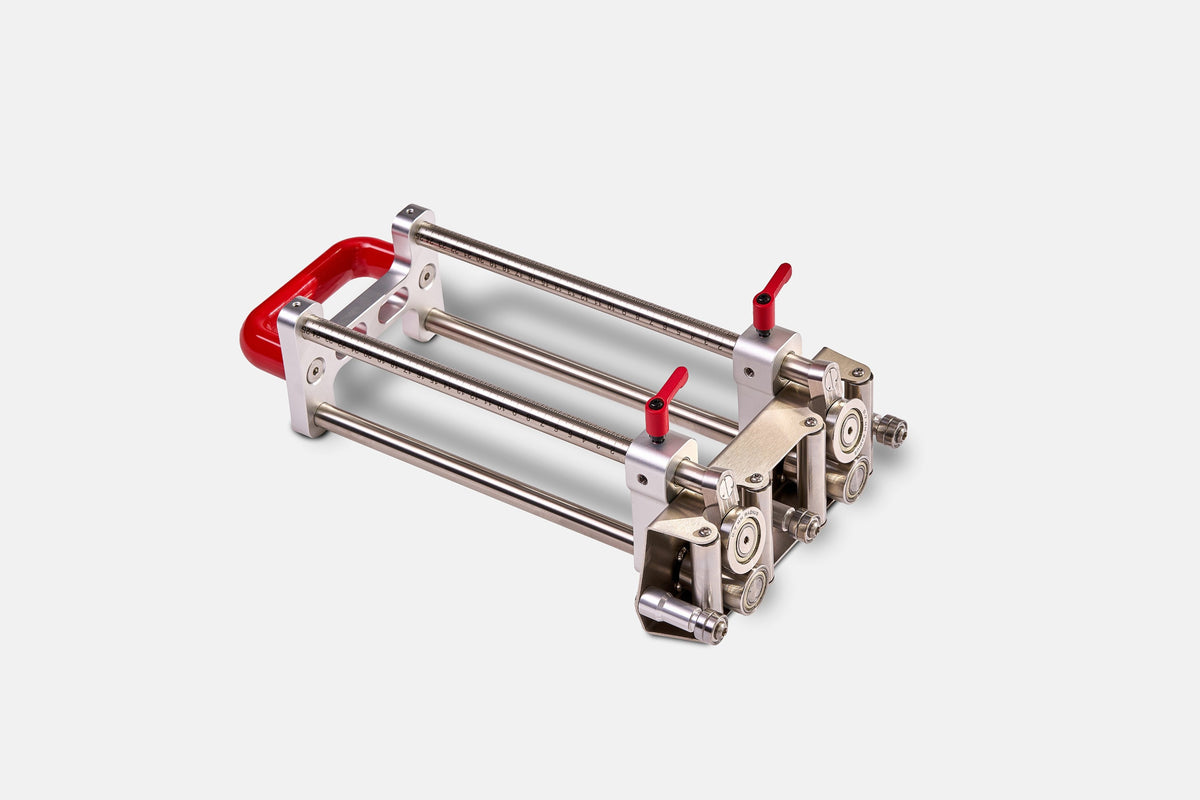

Buschmann Perfect Deep Bender DXL Series

The Buschmann Perfect Deep Bender DXL Series is designed for bending already profiled sheet metal and forming large, deep bends with improved clearance and control.

A 45 mm space between the axles allows the tool to work with previously formed profiles up to 40 mm high. The spacing between the axles can be adjusted to suit different material thicknesses.

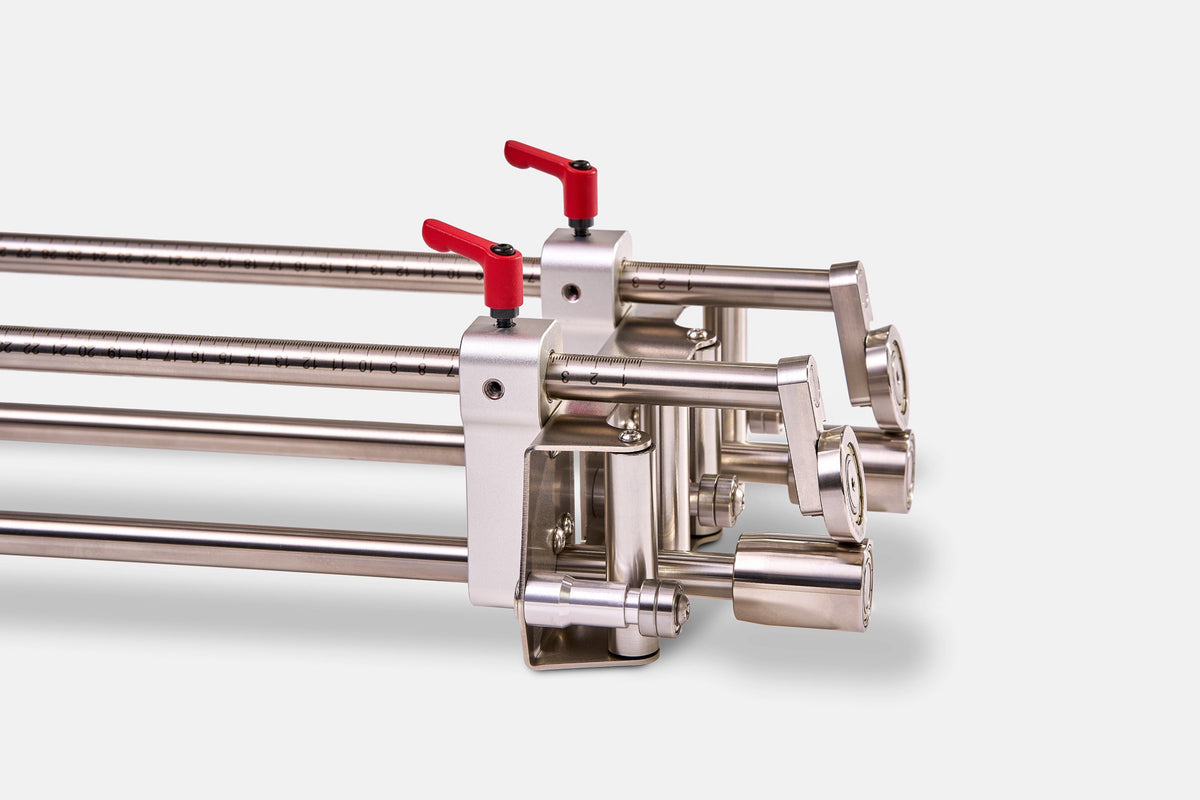

The double-guide construction and specially designed handle provide greater stability when forming flashings and double standing seam profiles. A bending roller positioned at a 10° angle helps prevent scratching and improves the quality of the finished bend.

Features

• Bends sheet metal up to 100°
• Designed for bending already profiled materials
• Handles preformed profiles up to 40 mm high
• 45 mm clearance between the axles
• Adjustable axle spacing for different material thicknesses
• Double-guide system for improved stability and accuracy
• Special handle for flashings and double standing seam profiles
• Suitable for material thicknesses up to 0.8 mm
• Bending roller radius: 0.7 mm
• 10° raised bending roller helps reduce scratching
• Supplied with a waterproof canvas carrying bag

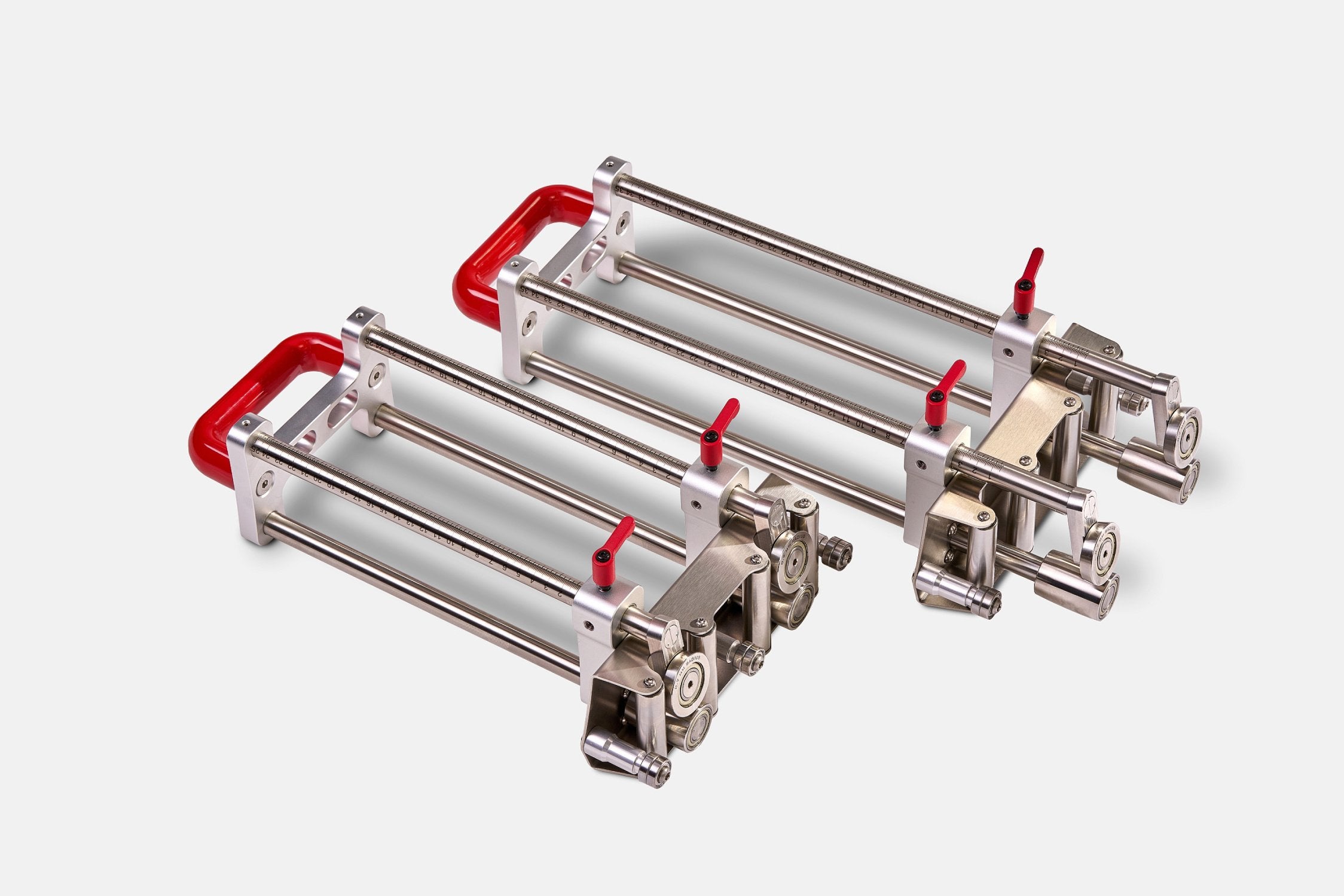

Available Models
